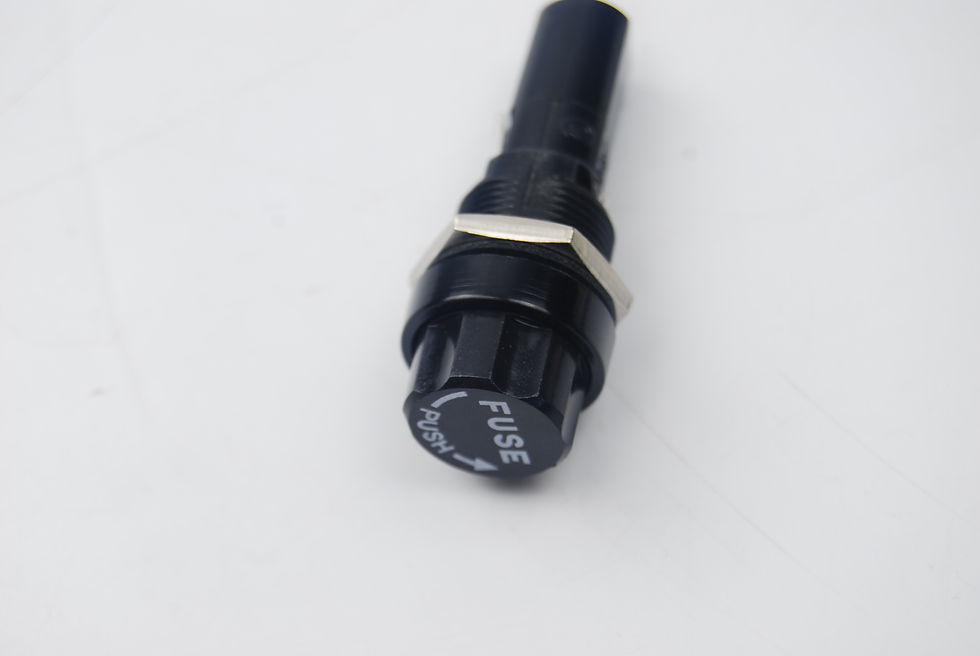

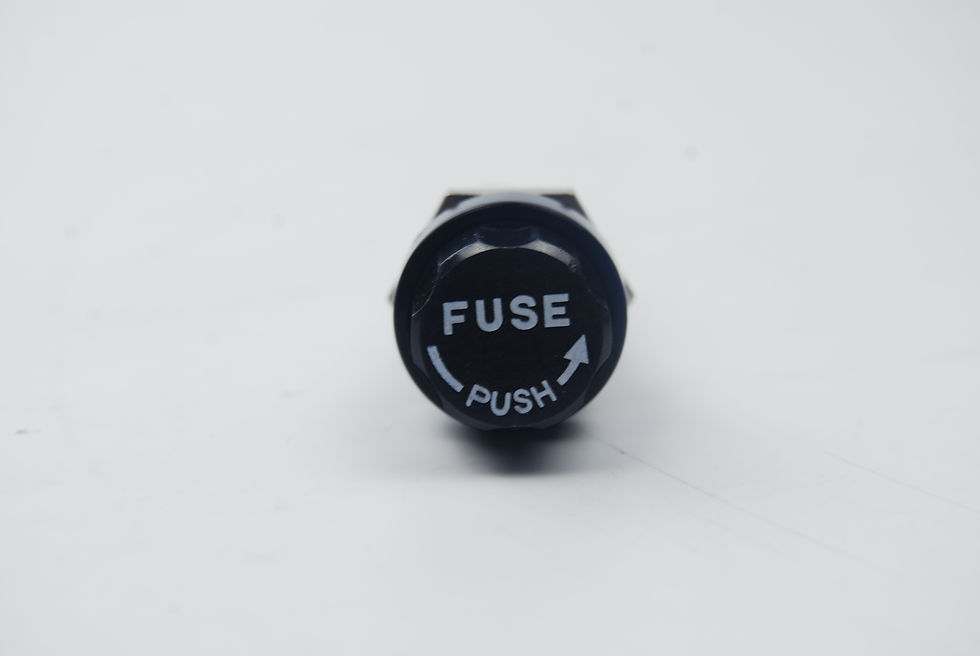

F-70 - Fuse Holder, Fuse

F-70 - Fuse Holder, Fuse

฿445.00Price

Please consult with us for the unit price, stock, lead-time, MOQ., and specifications.

  • Product Specifications

    Product F-70

    Rating 125V-30A
    Insulation resistance Above DC500V, 100MΩ
    Withstand voltage AC1500V 1 minute
    Certificates & approvals UL, CSA
    Main insulator Phenol (UL94V-0)
    Terminal type Soldering
    Body color B (Black)
    Panel thickness 6.5mm (MAX)
    Nut Tightening Torque 1.5N·m Max
    Nut Width Across Flat 19mm
    Note 1.Can't be used with fuse tube Φ6.4×30mm, Sato Parts doesn't produce and sell fuse tube Φ6.35×31.8mm 2.Due to bottom terminal designed movable, it must away from any other article such as wire or components. 3.Must not apply any tension or extra force on the terminal after solder.4. We recommend that you ask us for product documents before purchase.
